What is a block foundation? Before a house ever has walls, windows, or a roof, it has a foundation. And for millions of homes across the country, especially those built between the 1930s and 1980s, that foundation is made of stacked masonry blocks. Simple in concept, but far from simple in practice.
A block foundation is exactly what it sounds like: a structural base built from individual masonry units, typically concrete or cinder blocks, laid in courses and mortared together. It holds up the entire weight of a structure and transfers that load into the ground below. When it works, you never think about it.
When it doesn’t, it becomes the only thing you think about. Let’s learn a bit more about block foundation.
Here’s What a Block Foundation Actually Is

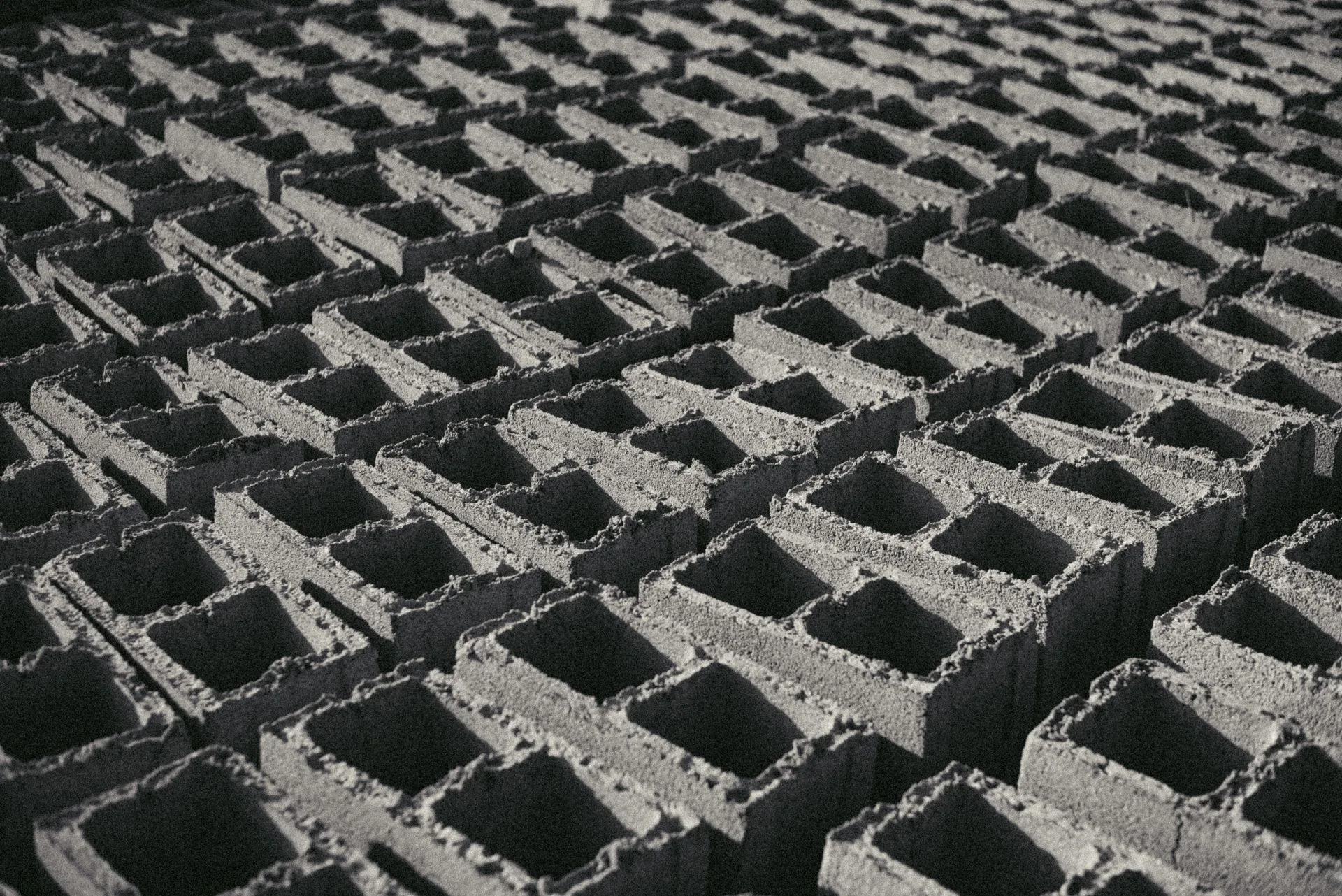

To understand what a block foundation is, picture individual masonry units, usually hollow-core concrete or cinder blocks, stacked in a grid pattern and bonded with mortar. Unlike a poured concrete wall, which is cast as a single continuous structure, a block foundation is assembled piece by piece.
That distinction matters: the joints between blocks create natural weak points where water, pressure, and time do their worst work.
Block foundations are most commonly found in the crawl space and basement configurations of older homes, though they’re still used in some modern residential and light commercial construction today.
Cinder Block Foundation vs. Concrete Block Foundation
These two terms are often used interchangeably, but they’re not identical.
| Feature | Cinder Block Foundation | Concrete Foundation Blocks |
| Primary Material | Fly ash or coal cinders | Portland cement and aggregates |
| Weight | Lighter | Heavier |
| Strength | Lower compressive strength | Higher compressive strength |
| Age of Use | Common pre-1970s | Standard modern use |
| Moisture Resistance | More porous | More resistant |
| Availability | Largely discontinued | Widely available |
True cinder blocks, made with fly ash or coal cinders as aggregate, were the industry standard for much of the 20th century. If your home was built before 1970 and has a masonry foundation, there’s a reasonable chance it’s a cinder block foundation.
Concrete foundation blocks replaced them as the preferred material once the limitations of cinder blocks became apparent, particularly around moisture absorption and long-term durability.
What Are Foam Foundation Blocks?
A newer entrant to the category, foam foundation blocks (also called insulated concrete forms, or ICFs) use expanded polystyrene foam as a forming system around poured concrete. The foam stays in place permanently, acting as insulation.
Foam foundation blocks are not the same as traditional masonry block foundations, they’re a hybrid system. They offer better insulation values and can reduce moisture infiltration, but they’re used primarily in new construction rather than repairs or retrofits.

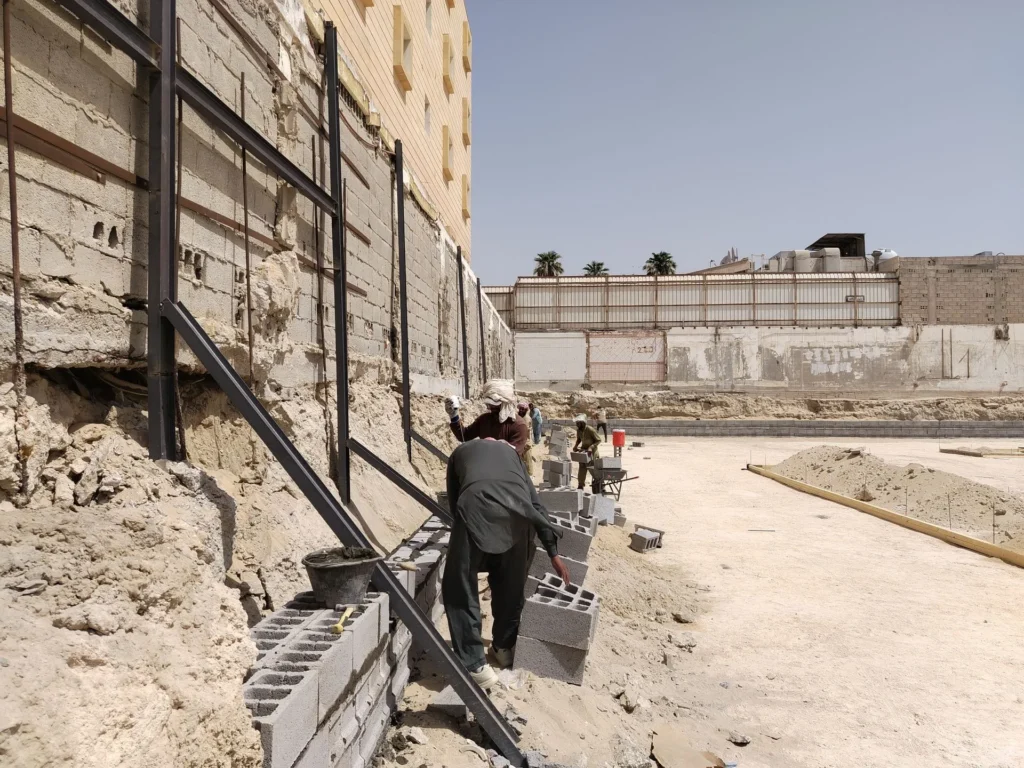

How Block Foundations Are Built
The construction process for a block foundation follows a straightforward sequence, though the quality of execution makes an enormous difference in long-term performance.
First, a concrete footing is poured below the frost line, this is the actual base that bears the load. Then, masonry blocks are laid in courses on top of the footing, staggered like brickwork to distribute weight evenly.
Steel rebar is sometimes placed vertically through the hollow cores, which are then filled with concrete grout to add tensile strength. Horizontal joint reinforcement may also be embedded in the mortar beds.
The result is a wall that handles compressive loads well. What it handles less gracefully is lateral pressure, the sideways push of soil against the wall, and water.
Common Problems With Block Foundations
Block foundations face a specific set of vulnerabilities that homeowners should understand.
- Water infiltration and efflorescence: The mortar joints between blocks are permeable, allowing water to seep through over time. White, chalky deposits on the wall surface (efflorescence) are usually a symptom of ongoing moisture intrusion.
- Horizontal cracking: Cracks running along the mortar joints indicate lateral soil pressure pushing the wall inward. One of the most serious warning signs in a block foundation, not something to monitor and revisit later.
- Stair-step cracking: Diagonal cracks following the mortar joints in a stair-step pattern typically signal differential settlement, where different sections of the foundation are sinking at uneven rates.
- Bowing and buckling: Sustained lateral pressure can push block walls inward over time. A quarter-inch of inward movement warrants evaluation; two inches means structural integrity is already at risk.
- Spalling and surface deterioration: Older cinder blocks are especially prone to surface flaking as moisture cycles in and out. Once the outer shell breaks down, load-bearing capacity drops and water infiltration accelerates.
Concrete Block Foundation Repairs
Repairing a concrete block foundation isn’t a single solution, it’s a category of solutions, and the right one depends entirely on what’s failing and why.
Here’s how common block foundation repairs break down:
- Carbon fiber straps: For walls with early-stage bowing or horizontal cracking, carbon fiber straps are anchored to the floor and wall plate to halt inward movement. They’re minimally invasive and highly effective when applied before movement advances.
- Wall anchors: Steel plate anchors connect the bowing wall to stable soil beyond the pressure zone. Over time, the anchors can be tightened to gradually restore the wall toward plumb.
- Steel I-beam reinforcement: Vertical steel beams installed against the interior face of a bowing wall provide rigid support and prevent further movement.
- Underpinning: When the foundation itself is settling due to inadequate soil support, underpinning methods (helical piers, push piers, concrete piers) transfer the structural load to deeper, more stable strata.
- Tuckpointing: Deteriorated mortar joints are ground out and replaced with fresh mortar to restore water resistance and structural continuity.
- Full section replacement: In cases of severe deterioration or significant structural failure, damaged block courses may need to be removed and rebuilt.
What repairing a concrete block foundation is not: a DIY afternoon project. The consequences of misdiagnosis or improper repair are measured in structural failure.
Conclusion
A block foundation is one of the most common structural systems in American residential construction, and one of the most misunderstood. It can serve a home for a century when it’s built right, drained properly, and repaired early. It can become a significant problem when warning signs are ignored.
G.L. Hunt has been evaluating and repairing Texas foundations since 1984. If your block foundation is showing signs of distress, or if you just want to know what you’re working with, our team offers free foundation inspections across our service area.
The earlier a problem is identified, the more options there are to fix it.
Reach out to the our team of professionals to help you. Book a free estimate or Call us now!
FAQ
Are block foundations good or bad?
Block foundations are a legitimate, proven construction method. They handle compressive loads well but are vulnerable to water infiltration and lateral soil pressure. Proper drainage and periodic inspection keep those weaknesses in check.
Is a block foundation a permanent foundation?
Yes. Block foundations meet permanent foundation standards under building codes and major lending guidelines, including FHA and conventional mortgages. Permanent doesn’t mean maintenance-free, address damage early before it compounds.
How much does it cost to repair a block foundation?
It depends on the damage. Minor repairs run a few hundred to a few thousand dollars; major structural work costs considerably more. A professional inspection is the only reliable way to get an accurate number.
Does a block foundation mean no basement?
No. Block foundations are used for basements, crawl spaces, and slab-on-grade builds. Whether yours includes a basement depends on how deep the block walls extend below grade.
